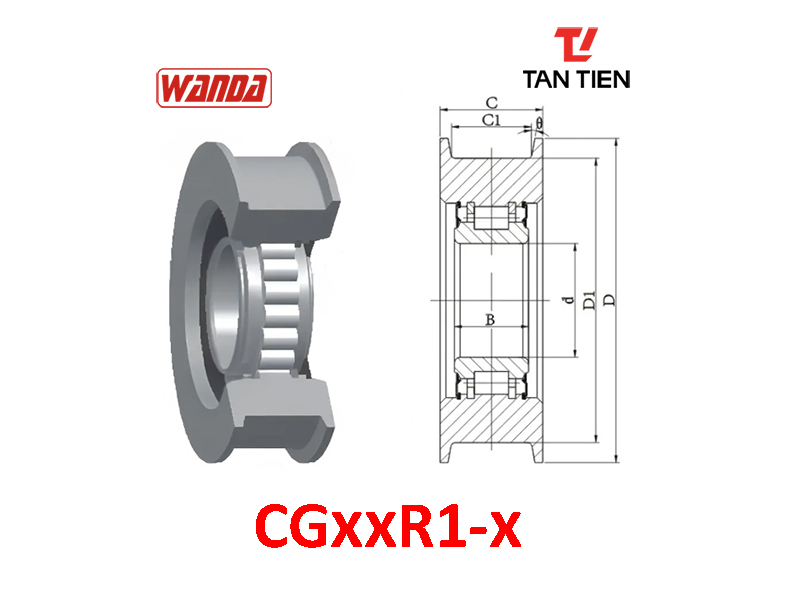

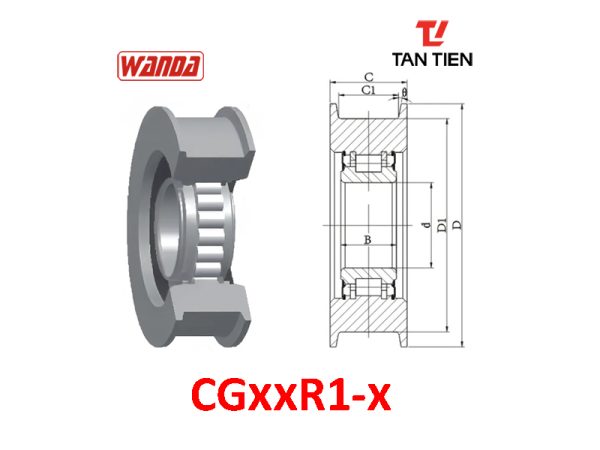

CGxxR1-x Bạc đạn xích lõi bi đũa, nút chặn đôi
Giá: Liên Hệ
- Model: CGxxR1-x
- Loại: Nút chặn đôi
- Lõi: Lõi bi đũa
- Kích thước: dxDxC/B (mm)
CGxxR1-x Bạc đạn xích lõi bi đũa, nút chặn đôi.
Bảng thống kê các dòng Bạc đạn xích CGxxR1-x
| Mã Wanda | Kích thước (mm) | Mã tham chiếu | Khả năng chịu tải (kN) | |
| (dxDxC/B) | Tĩnh (Cr) | Động (Cor) | ||
| CG25R1-2 | 25*117/104*46.5/32.5*48.5 | D581987 | 85.35 | |
| CG25R1-3 | 25*108/90*46.5/32.5*48.5 | W-A216341 | 85.35 | |
| CG30R1-1 | 30*73/65*27/20.5*28 | 50 | ||
| CG30R1-2 | 30*77/65*34/22*26 | 780606K2 | 57.8 | |
| CG30R1-3 | 30*90/80*36/27*19 | CWR306A | 48 | |
| CG35R1-14M1 | 35*112/102*47/39.4*49 | 176014 | 115.2 | |
| CG35R1-15M1 | 35*112/102*47/39.4*49 | 115.2 | ||
| CG35R1-16M1 | 35*79/70*26/20*20 | 44.5 | ||
| CG35R1-25M1 | 35*114.3/98.8*56/47*58 | 160 | ||
| CG35R1-27M1 | 35*88/80*27/23*28 | 88 | ||
| CG35R1-28 | 35*90/62*28.35/4*21.7 | 45.9 | ||
| CG38.1R1-3A | 35*90/62*28.35/4*21.7 | 164.6 | ||
| CG38.1R1-4A | 38.1*155.5/143*50.8/42*38 | 164.6 | ||
| CG38.1R1-5 | 38.1*165/152*50.8/42*50.8 | 164.6 | ||
| CG40R1-8A | 40*108/94*33.2/25*23 | MRCH28-4-2RS | 52.8 | |
| CG40R1-9 | 40*111/101*36/27*26 | 58.3 | ||
| CG40R1-12A | 40*107.95/95*33.32/25.4*23 | 1692093 | 52.8 | |
| CG40R1-18 | 40*95.3/85*34.5/27*30 | MRCH28-5-2RS | 76.2 | |
| CG40R1-19 | 40*100/85*36/26*38 | MK30086 | 122.1 | |
| CG40R1-30A | 40*124/104*43/30*30 | 83.8 | ||
| CG40R1-34A | 40*100/82*36/25*26 | 58.3 | ||
| CG40R1-35 | 40*108/90*36/25*26 | 08N1084 | 58.3 | |
| CG40R1-37A | 40*100/84*36/27*26 | 58.3 | ||
| CG40R1-43 | 40*93/80*26/20*20 | 51.3 | ||
| CG40R1-44 | 40*139/127*50.8/42*38 | 35112-B | 125 | |
| CG40R1-48 | 40*103.12/90.93*50.8/41.91*38 | CWR5308A | 100 | |
| CG40R1-51 | 40*107.8/95.4*36.6/28.5*23 | CGM308C | 52.8 | |
| CG40R1-53 | 40*92/82*36/26*26 | SC080936/26V | 58.3 | |
| CG45R1-1A | 45*150/128*69/50*50.8 | CWR309N | 174 | |
| CG45R1-2A | 45*174/151*72/51*50.8 | MRCH39-1A、362352 | 174 | |
| CG45R1-3 | 45*174/151*72/51*50.8 | CGM5214 | 174 | |
| CG45R1-4 | 45*152.4/128.6*50.8/42*38 | CWR5309A | 125 | |
| CG45R1-5 | 45*161/139*50.8/42*38 | 125 | ||
| CG45R1-6 | 45*164/139*50.8/42*38 | 125 | ||
| CG45R1-7 | 45*179/150*50.8/42*38 | MRCH39-1A | 125 | |
| CG45R1-8 | 45*103/85*36/26*26 | CWR309 | 58.3 | |
| CG45R1-10 | 45*90/82*35/26*24 | SC081045/26V | 51.2 | |
| CG45R1-13 | 45*110/100*36/26*26 | 58.3 | ||
| CG45R1-14 | 45*108/90*36/26*26 | SC081045/26V | 58.3 | |
| CG45R1-15 | 45*100/90*36/26*26 | 58.3 | ||
| CG45R1-16 | 45*95/80*36/26*26 | 58.3 | ||
| CG45R1-17 | 45*90/75*36/26*26 | 58.3 | ||
| CG45R1-18 | 45*105/90*36/26*26 | 58.3 | ||
| CG45R1-19 | 45*115/95*38/28*28 | 66 | ||
| CG45R1-20 | 45*118/95*38/28*28 | 66 | ||
| CG45R1-21 | 45*135/110*45/32*32 | 100 | ||
| CG45R1-22 | 45*136/115*45/32*32 | 100 | ||
| CG45R1-23 | 45*150/124*45/32*32 | 100 | ||
| CG45R1-24 | 45*139/115*50.8/42*38 | 125 | ||
| CG45R1-25 | 45*174/151*50.8/42*38 | 125 | ||
| CG45R1-26 | 45*166/145*50.8/42*38 | 125 | ||
| CG50R1-1A | 50*135/115*50.8/42*38 | MRCH311 | 125 | |
| CG50R1-2A | 50*165/140*72/51*50.8 | MRCH311A | 174 | |
| CG50R1-3 | 50*95/80*38/28*28 | 66 | ||
| CG50R1-4 | 50*100/80*36/28*28 | 66 | ||
| CG50R1-5 | 50*100/80*38/28*28 | 66 | ||
| CG50R1-6 | 50*100/80*36/26*26 | 58.3 | ||
| CG50R1-7 | 50*120/95*38/28*28 | 66 | ||
| CG50R1-8 | 50*130/100*40/30*30 | 83.8 | ||
| CG50R1-9 | 50*105/90*36/28*28 | 66 | ||
| CG50R1-10 | 50*120/100*40/30*30 | 83.8 | ||
| CG50R1-11 | 50*140/120*45/32*32 | 100 | ||
| CG50R1-12 | 50*146/128*45/32*32 | 100 | ||
| CG50R1-13 | 50*160/140*50/32*32 | 100 | ||
| CG50R1-14 | 50*168/144*45/32*32 | 100 | ||
| CG50R1-16 | 50*170/150*45/32*32 | 100 | ||
| CG50R1-17 | 50*174/150*50.8/42*38 | 125 | ||
| CG50R1-18 | 50*179/155*50.8/42*38 | 125 | ||
| CG50R1-19 | 50*190/165*50.8/42*38 | 125 | ||
| CG50R1-20 | 50*180/150*50.8/42*38 | 125 | ||
| CG55R1-1A | 55*170/145*45/32*32 | MRCH311 | 125 | |
| CG55R1-2 | 55*103/85*36/28*28 | 174 | ||
| CG55R1-3 | 55*130/105*40/30*30 | 66 | ||
| CG55R1-4 | 55*150/128*45/32*32 | 83.8 | ||
| CG55R1-5 | 55*150/128*45/32*32 | 100 | ||
| CG55R1-6 | 55*170/145*45/32*32 | 100 | ||
| CG55R1-7 | 55*174/150*50.8/42*38 | 100 | ||
| CG55R1-8 | 55*180/155*50.8/42*38 | |||
| CG55R1-9 | 55*190/165*50.8/42*38 | |||
| CG55R1-10 | 55*200/175*50.8/42*38 | |||
